- General Information
- Manufacturer
- ATEN Technology, Inc
- Manufacturer Website Address
- http://www.aten.com
- Brand Name
- ATEN
- Packaged Quantity
- 1
- Product Type
- PDU

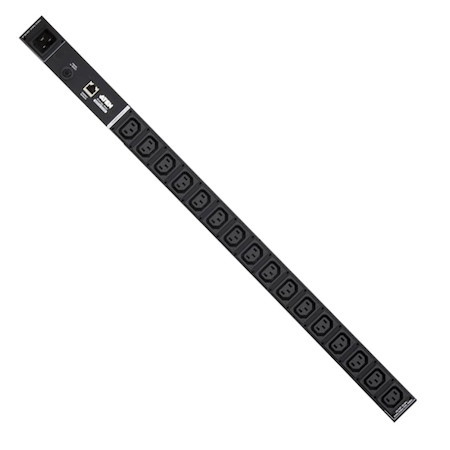

ALTUSEN PE1216 - Power Distribution Unit Energy PDU
Power Distribution Energy PDU PE1216 has 16 AC outlets and is available in a complete set with rosettes IEC or NEMA. It has a compact body 0U Vertical Rack to make effective use of the workspace.
Power Distribution Energy PDU PE1216 can be connected to the analytical system based on the Energy Box EC1000 software 'eco Sensors». The system allows you to keep track of current and working conditions Energy PDU in real time. Control and management can be carried out locally via the front panel EC1000 rack or remotely - via the web interface. Thus, with a minimum of effort becomes energy efficient server room.
- Technical Information
- Plug/Connector Type
- IEC 60320 C20
- Plug/Connector Detail
- 1 x IEC 60320 C20
- Receptacle Type
- IEC 60320 C13
- Receptacle Detail
- 16 x IEC 60320 C13
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Input Voltage Range
- 120 V AC - 230 V AC
- Input Current
- 16 A
- Management
- Management
- Energy Box EC1000 Software
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Physical Characteristics
- Mounting Orientation
- Vertical
- Mount Type
- Rack-mountable
- Rack Height
- 0U
- Height
- 44 mm
- Width
- 44 mm
- Weight (Approximate)
- 1.23 kg
- Miscellaneous
- Package Contents
- PE1216G-AX-G 16-Outlets PDU
- 1 x Power Cord
- 1 x Mounting Kit
- 1 x User Manual
