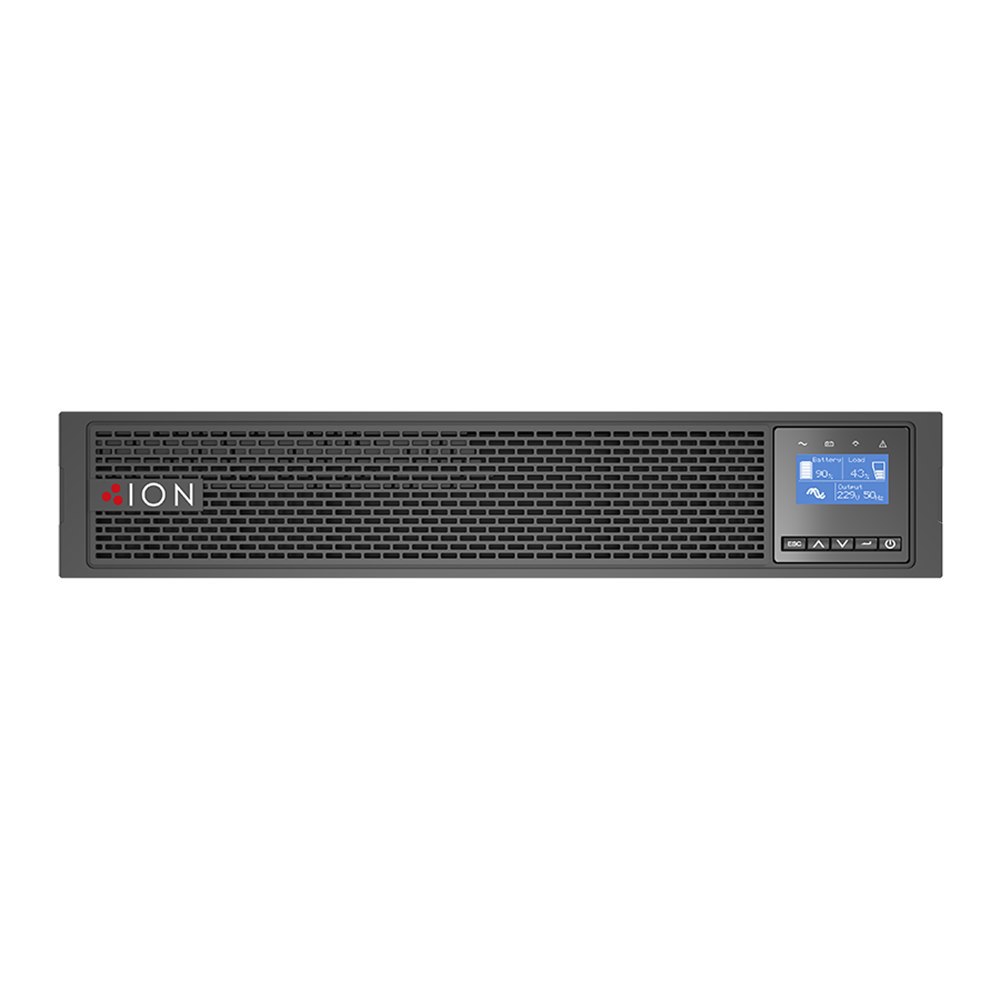

The ION F18-IOT-3KW-RT is a high-density, true double-conversion online UPS designed to provide premium power protection for critical IT and operational technology environments. With a unity power factor (1.0PF), this unit delivers a full 3000W of power, ensuring your servers, storage systems, and networking gear receive clean, uninterrupted energy. Its versatile 2U rack/tower convertible design makes it an ideal fit for diverse installations, from commercial data centres to industrial applications.
Equipped with future-proof connectivity, this UPS features built-in IoT communication capabilities for seamless cloud-based monitoring. This allows you to manage your power infrastructure remotely via any internet-connected device, providing real-time insights into battery health and load status. The intuitive LCD interface further simplifies local monitoring, while the high efficiency rating of over 97% in ECO mode helps significantly reduce operational energy costs.
Reliability is at the core of the F18-IOT series, featuring hot-swappable batteries and automatic detection of external battery modules (EBM) for scalable runtime. The system includes eight IEC-C13 and one IEC-C19 outlets, organised into programmable groups to allow for prioritised load shedding during extended outages. With its compact footprint and robust build, it offers the highest level of protection against data loss, corruption, and hardware downtime in harsh or demanding electrical environments.
Engineered for excellence, the F18-IOT-3KW-RT includes advanced features such as a digital charger with adjustable current and conformal coating on internal components for increased durability. Whether protecting medical equipment, VoIP systems, or high-end servers, this UPS provides peace of mind through its 3-year advanced replacement warranty. It is a comprehensive power solution that balances high performance with ease of management and long-term reliability.
FEATURES
- True double-conversion online technology for ultimate power quality
- Unity power factor (1.0) delivering full 3000W output
- 2U Rack/Tower convertible form factor for installation flexibility
- IoT-ready with seamless cloud monitoring capabilities
- Grouped programmable outlets for intelligent load management
- High efficiency ECO mode (up to 98%) for energy savings
- Hot-swappable batteries for maintenance without downtime
- HID and PCBA conformal coating for enhanced protection
SPECIFICATIONS
- Model Number: F18-IOT-3KW-RT
- Power Rating: 3000VA/3000W
- Output Power Factor: 1.0 (Unity)
- Input Voltage Range: 160-300V (at 100% load)
- Output Voltage: 200/208/220/230/240VAC (selectable)
- Voltage Accuracy: ±1%
- Frequency: 50Hz/60Hz (auto-sensing)
- Efficiency (Double Conversion): 93%
- Efficiency (ECO Mode): 98%
- Battery Type: 12V 9AH (x6) sealed Lead-Acid
- Recharge Time: 3 hours to 95% (internal batteries)
- Interface Ports: RS232, USB, EPO, IOT Port
- Outlets: 8x IEC-C13, 1x IEC-C19
- Input Connection: IEC-C20
- Dimensions: 85.5mmx438mmx600mm (2U)
- Net Weight: 26.8kg
- Operating Temperature: 0-40°C
- Audible Noise: <50dB
WARRANTY
3-Year Advanced Replacement Warranty
