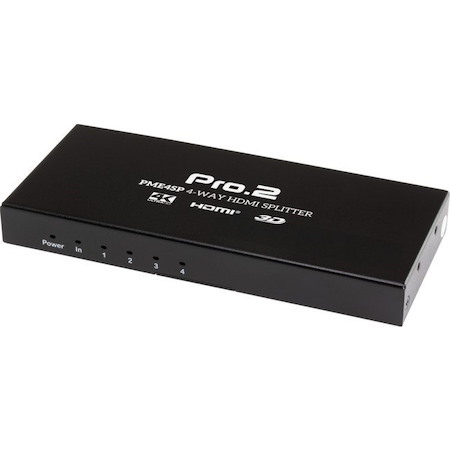

The 006.010.0019 4-Way HDMI Splitter allows you to simultaneously display an Ultra Hi-Def source on up to four Ultra HD displays. It supports resolutions up to 4K at 30Hz with 4:4:4 colour sampling, delivering crisp and vibrant images across all connected displays. Compatible with HDMI 1.4 and HDCP 1.4, this splitter seamlessly integrates into various existing setups.
This device is engineered to handle PCM2.0, DTS, Dolby, and LPCM Max 7.1 channel audio, ensuring high-quality sound to complement the visuals. It also supports 3D video, providing an immersive viewing experience. The built-in EDID copy function is a key feature, optimising compatibility between your source and displays by intelligently managing EDID information, prioritising monitors and lower resolution displays when needed.
Setting up the splitter is simple: connect your HDMI source to the input port, attach your displays to the output ports, and power on the device. Its compact dimensions of 150x64.5x17mm and a weight of 240g make it easy to accommodate in any environment. The splitter is also energy-efficient, with a power consumption of only 1.5W.
Ideal for applications ranging from home theatres to presentation spaces and digital signage systems, the 006.010.0019 HDMI Splitter provides reliable performance and high-quality output. Note that this splitter is designed for 4K at 30Hz and may not be suitable for applications requiring 4K at 60Hz.
FEATURES
- Simultaneously displays an Ultra Hi-Def source on up to four Ultra HD displays
- Supports resolutions up to 4K@30Hz with 4:4:4 colour sampling
- Compatible with HDMI 1.4 and HDCP 1.4
- Supports PCM2.0, DTS, Dolby, LPCM Max 7.1 channel audio
- Supports 3D video
- EDID copy function for optimal compatibility
SPECIFICATIONS
- Operating Temperature Range: -5 to 35°C (23 to 95°F)
- Operating Humidity Range: 5 to 90%RH (No Condensation)
- Bandwidth Frequency: 10.2Gbps
- Input Port: 1xHDMI (female)
- Output Ports: 4xHDMI (female)
- Resolution Outputs: Up to 4K@30Hz 4:4:4
- Audio Format: PCM2.0, DTS, Dolby, LPCM Max 7.1
- Dimensions (LxWxH): 150x64.5x17mm
- Power Consumption: 1.5W (MAX)
- Net Weight: 240g
WARRANTY
1-Year Limited Warranty
